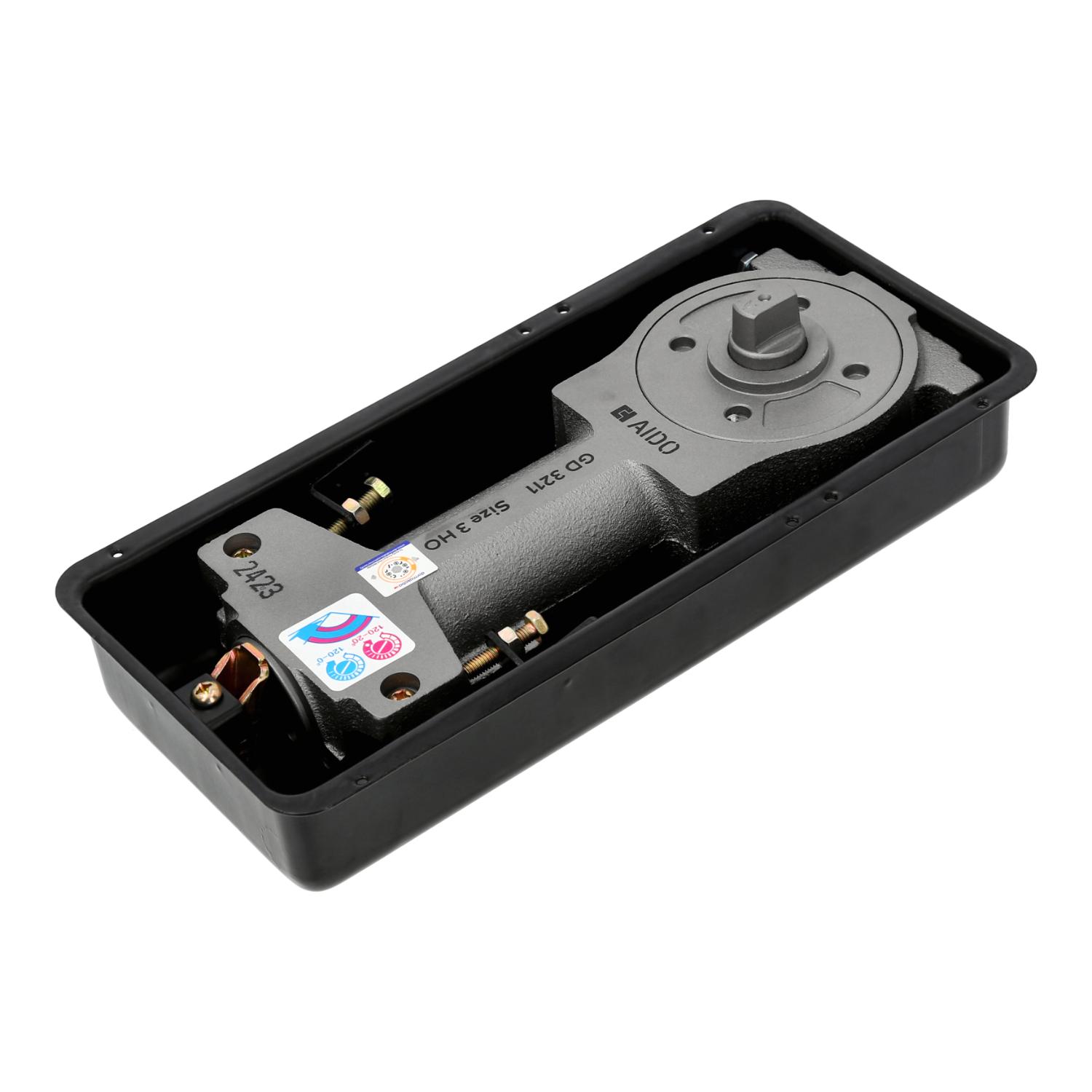

GD 3211 floor spring

Name: GD 3211 floor spring
Brand: AIDO

Model GD 3211

Available in the Philippines

The GD 3211 closes double-action glass and timber doors up to 1000 mm wide and 85 kg, with adjustable closing and latching speed and a 90° hold open.

Prices are set by authorised retailers. Confirm stock and finish with your retailer.

Why the GD 3211

Adjustable closing and latching speed
Separate valves set how fast the door closes and how gently it latches.
Holds open at 90°
The door can be held open at 90° when you need a clear way through.
Swings both ways
Made for standard double-action doors that open inward and outward.

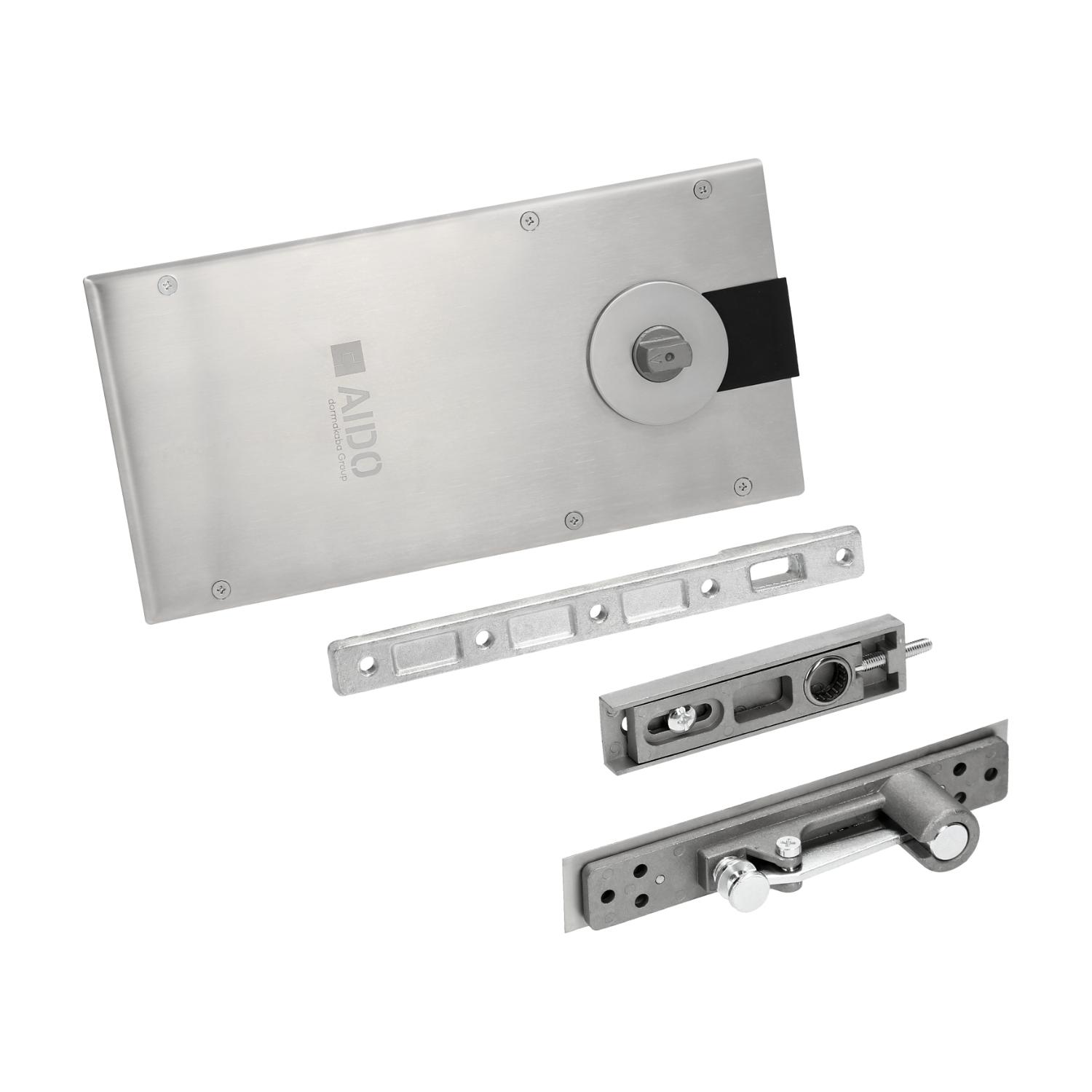

A complete glass door package
Supplied with patch fittings and a patch lock for a frameless glass door.

GD 3211 floor spring specifications
Model	GD 3211
Product type	Floor spring
Door type	Standard double-action glass and timber doors
Maximum door width	1000 mm
Maximum door weight	85 kg
Door closing angle	Up to 120°
Spring strength	Size 3 or size 4
Maximum closing speed	Fixed
Closing speed	Adjustable via valve
Latching speed	Adjustable via valve
Hold open	90°
Handing	Non-handed version available
Length	298 mm
Width	148 mm
Recommended use	Low-traffic areas
Standards and certifications	[Standards and certifications]
Warranty	[Warranty terms]

Authorised retailers can confirm stock, finishes and price for the GD 3211.

Questions about door size, weight or installation? Send us the details.
